Sony > IP CAM

產品種類:
720P

產品編號

產品規格

檔案下載
IMX 225LQR-C         1/3” 1.27M CMOS 720P 120fps
Number of recommended recording
pixels: 1280 (H) × 960 (V) approx. 1.23M pixel
Unit cell size: 3.75 μm (H) × 3.75 μm (V)
Sensitivity : 2350(mV )
欲知詳細規格
請與業務人員連絡



1080P

產品編號 產品規格 檔案下載
IMX 307LQR-C        1/2.8” 2.1M CMOS 1080P 60 fps DOL WDR
Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 1300(mV)
欲知詳細規格
請與業務人員連絡
IMX307LQD-C 1/2.8” 2.1M CMOS 1080P 60 fps DOL WDR
Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 1300(mV)
IMX 327LQR-C 1/2.8” 2.1M CMOS 1080P 60 fps DOL WDR
Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 2376(mV)
IMX 290LQR-C 1/2.8” 2.1M CMOS 1080P 120 fps DOL WDR
Number of recommended recording
pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
Unit cell size: 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 1300(mV)
IMX 291LQR-C 1/2.8” 2.1M CMOS 1080P 120fps
Number of recommended recording
pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
Unit cell size: 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 1300(mV)
IMX 385LQR-C 1/2 2.13M CMOS 1080p 120fps DOL WDR
Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
Unit cell size : 3.75 μm (H) × 3.75 μm (V)
Sensitivity : 2350(mV)
IMX 482LQJ-C

1/1.2” 2.1M CMOS 1080P 3F 30 fps DOL WDR
Number of recommended recording
pixels 1920 (H) × 1080 (V) approx.  2.07 M
pixels Unit cell size : 2.9 μm (H) × 2.9 μm (V) * 4
binning Sensitivity : 8935(mV)

IMX 462LQR-C

1/2.8” 2.1M CMOS 1080P 60 fps DOL WDR
Number of recommended recording
pixels 1920 (H) × 1080 (V) approx.
2.07 M pixels Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 2300(mV) NIR Improve

 IMX 662AAQR-C

1/2.8” 2.4M CMOS 1080P 90 fps DOL WDR
Number of recommended recording
pixels: 1920 (H) × 1080 (V) approx.
2.07M pixel Unit cell size: 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 5600(mV) NIR Improve



4~6M

產品編號 產品規格 檔案下載
IMX 464LQR-C 1/1.8” 4M CMOS 3F 30 fps DOL WDR
Number of recommended recording pixels
2688 (H) × 1520 (V) approx. 4.08 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : TBD(mV)
@850nm NIR enhancement 60%
欲知詳細規格
請與業務人員連絡
IMX 347LQR-C 1/1.8” 4M CMOS 3F 30 fps DOL WDR
Number of recommended recording pixels
2688 (H) × 1520 (V) approx. 4.08 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : TBD(mV)
@850nm NIR enhancement 30%
IMX 178LQJ-C   1/1.8” 6.3M CMOS, 60fps
 Number of recommended recording pixels
3072 (H) × 2048 (V) approx. 6.29 M pixels (3:2)
Unit cell size : 2.4 μm (H) × 2.4 μm (V)
Sensitivity : 425(mV)
IMX 335LQN-C 1/2.8” 5.14M CMOS  60 fps DOL WDR
Number of recommended recording pixels
2592 (H) × 1944 (V) approx. 5.04 M pixels
Unit cell size : 2.0 μm (H) × 2.0 μm (V)
Sensitivity : 500(mV)
IMX 675AAQR-C 1/2.8” 5.14M CMOS 60 fps DOL WDR / Clear HDR
Number of recommended recording pixels
2592 (H) × 1944 (V) approx. 5.04 M pixels
Unit cell size : 2.0 μm (H) × 2.0 μm (V)
Sensitivity : 1200(mV)



4K2K

產品編號 產品規格 檔案下載
IMX 226CQJ-C    1/1.7” 12.4M CMOS 30fps
Number of recommended recording pixels
4000 (H) × 3000 (V) 12.00 M pixels aspect ratio 4:3
4096 (H) × 2160 (V) approx. 8.85 M pixels aspect
ratio approx. 17:9
Unit cell size :1.85 μm (H) × 1.85 μm (V)
Sensitivity : 280(mV)
欲知詳細規格
請與業務人員連絡
IMX 334LQR-C  1/1.8” 8.42M CMOS  60 fps DOL WDR
Number of recommended recording pixels
3840 (H) × 2160 (V) approx. 8.29 M pixels
Unit cell size : 2.0 μm (H) × 2.0 μm (V)
Sensitivity : 505(mV)
IMX 412AACK-C 1/12.3” 12.4M CMOS  60 fps DOL WDR
Number of recommended recording pixels
4072 (H) × 3046 (V) approx. 12.4 M pixels
Unit cell size : 1.55 μm (H) × 1.55 μm (V)
Sensitivity : 127(mV)
IMX 415AAQR-C  1/2.8” 8.46M CMOS 90fps
Number of recommended recording pixels
3840 (H) × 2160 (V) 8.29 M pixels aspect ratio 16:9
Unit cell size :1.45 μm (H) × 1.45 μm (V)
Sensitivity : 300(mV)
IMX 485LQJ-C 1/1.2” 8.42M CMOS 60 fps DOL WDR
Number of recommended recording pixels
3840 (H) × 2160 (V) approx. 8.29 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 2400(mV)
IMX 515AAQN-C 1/2.8” 8.46M CMOS 60fps
Number of recommended recording pixels
3840 (H) × 2160 (V) 8.29 M pixels aspect ratio 16:9
Unit cell size :1.45 μm (H) × 1.45 μm (V)
Sensitivity : 300(mV) NIR Improve
IMX 715AAQR1-C 1/2.8” 8.46M CMOS 90fps
Number of recommended recording pixels
3840 (H) × 2160 (V) 8.29 M pixels aspect ratio 16:9
Unit cell size :1.45 μm (H) × 1.45 μm (V)
Sensitivity : 300(mV) NIR Improve
IMX 585AAQJ1-C 1/1.2” 8.42M CMOS 30 fps DOL WDR
Number of recommended recording pixels
3840 (H) × 2160 (V) approx. 8.29 M pixels
Unit cell size : 2.9 μm (H) × 2.9 μm (V)
Sensitivity : 2400(mV) NIR Improve
 IMX 678AAQR1-C  1/1.8” 8.4M CMOS 30 fps DOL WDR
Number of recommended recording
pixels 3840 (H) × 2160 (V) approx. 8.29 M
pixels Unit cell size : 2.0 μm (H) × 2.0 μm (V)
Sensitivity : 35410(mV) NIR Improve

IMX 676AACR1-C

1/1.6” 12.63M CMOS  60 fps DOL WDR / Clear HDR
Number of recommended recording pixels
3536 (H) × 3536 (V) approx. 12.5 M pixels
Unit cell size : 2.0 μm (H) × 2.0 μm (V)
Sensitivity : 1364(mV)

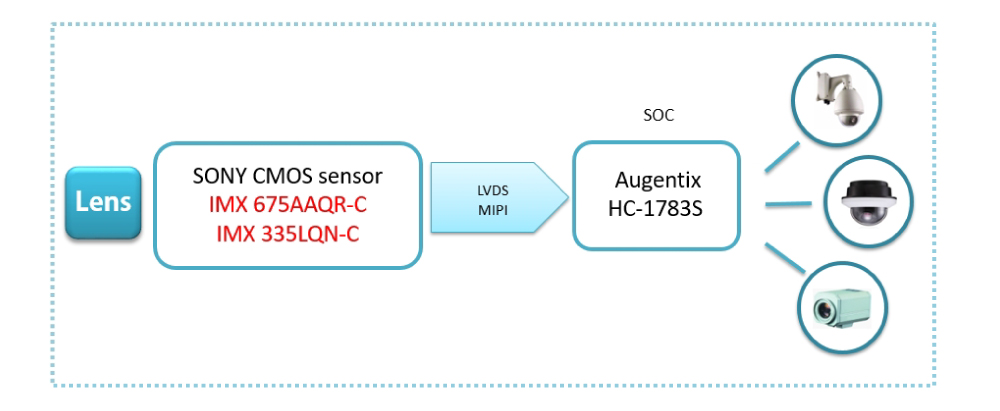

產品應用 :

1080P IP Camera

Fisheye Camera


4K2K IP Camera
