Sony > AV /CMOS
產品種類：
|
產品編號 |
產品規格 |
檔案下載 |
|
64M (1/1.7”) CMOS |
‧Back-illuminated and stacked CMOS image sensor ‧Quad Bayer Coding (QBC) color filter arrangement ‧Phase Detection Auto Focus (PDAF) designed for single focal lens ‧High Frame Rate C-PHY version 1.2: Full resolution (QBC Re-mosaic)@30 frame/s, QBC HDR@30 frame/s, V2H2 QBC HDR@30 frame/s, 2x2 Adjacent Pixel Binning (16:9)@120 frame/s, 2x2 Adjacent Pixel Binning V2H2 (16:9)@240 frame/s D-PHY version 1.2: Full resolution (QBC Re-mosaic)@13 frame/s, QBC HDR@13 frame/s, V2H2 QBC HDR@30 frame/s, 2x2 Adjacent Pixel Binning (16:9)@60 frame/s, 2x2 Adjacent Pixel Binning V2H2 (16:9)@240 frame/s ‧High signal to noise ratio (SNR) ‧Dual sensor synchronization operation ‧Built-in 2D Dynamic Defect Pixel Correction (DPC) ‧Lens Shading Correction (LSC) ‧Built-in temperature sensor ‧Output video format of RAW10, RAW8, RAW14 (QBC HDR without Local Tone Mapping) ‧QBC Re-mosaic function ‧Super Night Mode ‧QBC HDR function ‧Two PLLs for independent clock generation for pixel control and data output interface ‧CSI-2 serial data output MIPI D-PHY 2lane/4lane, Max. 2.5 Gbps/lane, D-PHY specification version 1.2 compliant MIPI C-PHY 1/2/3trio, Max. 3.8 Gsps/trio, C-PHY specification version 1.2 compliant ‧ 2-wire serial communication (Supports I2C “Fast mode”, “Fast-mode Plus”) ‧ 5 kbit of OTP ROM for users |
欲知詳細規格 請與業務人員連絡 |
| 48M (1/2”) CMOS | ‧Back-illuminated and stacked CMOS image sensor ‧Quad Bayer Coding (QBC) color filter arrangement ‧Phase Detection Auto Focus (PDAF) designed for single focal lens ‧High Frame Rate as Full resolution (QBC Re-mosaic)@30 frame/s, QBC-HDR@30 frame/s, 2×2 Adjacent PixelBinning (16:9)@120 frame/s, 2×2 Adjacent Pixel Binning V2H2 (16:9)@240 frame/s ‧High signal to noise ratio (SNR) ‧Dual sensor synchronization operation ‧Built-in 2D Dynamic Defect Pixel Correction (DPC) ‧Lens Shading Correction (LSC) ‧Built-in temperature sensor ‧Output video format of RAW10, RAW8, COMP8 ‧QBC Re-mosaic function ‧QBC HDR function ‧Two PLLs for independent clock generation for pixel control and data output interface ‧CSI-2 serial data output MIPI D-PHY 2lane/4lane, Max. 2.5 Gbps/lane, D-PHY spec. ver. 1.2 compliant MIPI C-PHY 1/2/3trio, Max. 2.5 Gsps/Trio, C-PHY spec. ver. 1.0 compliant ‧2-wire serial communication (Supports I2C "Fast mode" and "Fast-mode Plus") ‧28 kbit of OTP ROM for users |
|
|
23M(1/2.3”) CMOS |
‧Back-illuminated and stacked CMOS image sensor |
|
| 20M (1”) CMOS | ‧Input clock frequency 72 MHz ‧All-pixel scan mode Horizontal/vertical 2/2-line binning mode Horizontal/vertical 3/3-line binning mode Vertical 2/9 subsampling binning horizontal 3 binning mode Vertical 2/9 subsampling binning horizontal 3 binning mode low power comsumption Vertical 2/19 subsampling binning horizontal 3 binning mode Vertical 2 binning horizontal 2/4 subsampling mode ‧High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics ‧Variable-speed shutter function (minimum unit: 1 horizontal sync signal period (1XHS)) ‧Low power consumption ‧H driver, V driver and serial communication circuit on chip ‧CDS/PGA on chip. Gain +27 dB (step pitch 0.1 dB) ‧9-bit/10-bit/12-bit A/D conversion on chip ‧R, G, B primary color mosaic filters on chip ‧All-pixel simultaneous reset supported (use with mechanical shutter) ‧118-pin high-precision ceramic package |
|
| 20M (1/2.3”) CMOS | ‧CMOS active pixel type pixels ‧Input clock frequency 72MHz ‧High-sensitivity,low dark current, no smear excellent anti-blooming characteristice ‧Variable-speed shutter function(minmum unit:1 horizohtal sync signal period(1XHS)) ‧Low power consumption ‧H driver,V driver and serial communication circuit on chip ‧CDS/PGA on chip.Gain+27 dB(STEP PITCH 0.1 dB) ‧10-bit/12-bit A/D conversion on chip ‧R,G,B primary color mosaic filters on chip ‧All-pixel simultaneous reset supported(use with mechanical shutter) ‧98-pin high-precision ceramic package |
|
| 12M(1/2.3”) CMOS |
‧Back-illuminated and stacked CMOS image sensor ‧Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output. ‧High signal to noise ratio (SNR). ‧Full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame) ‧Output video format of RAW12/10/8, COMP8. ‧Power Save Mode with MIPI ULPS operation ‧Pixel binning readout and V sub-sampling function. ‧Independent flipping and mirroring. ‧Input clock frequency 6 to 27 MHz ‧CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.1 Gbps/lane, D-PHY spec. ver. 1.2 compliant) ‧2-wire serial communication. ‧Two PLLs for independent clock generation for pixel control and data output interface. ‧Defect Pixel Correction (DPC) ‧Ambient Light Sensor (ALS) ‧Fast mode transition. (on the fly) ‧Dual sensor synchronization operation (Multi camera compatible) ‧7 kbit of OTP ROM for users. ‧Built-in temperature sensor ‧10-bit/12-bit A/D conversion on chip ‧Horizontal Low Power Analog Cropping ‧Window Scanning mode ‧92-pin high-precision ceramic package |
產品特色：
高重現性，可按預期真實捕獲圖像
為了增強使用者拍攝圖像的真實感，放大所記錄場景的深遠效果，結合背照式結構和感測器降噪技術，增強信噪比，結合堆疊結構和低功耗技術追求高速性能，並結合微圖元的應用實現更高的解析度， 圖像感測器實現了高速、高解析度、高靈敏度的三軸演進。
支援各種範例的豐富圖像表達方式
如今，越來越多的拍照機會和多樣化的環境為消費類相機提供了更多的用例。圖像感測器實現了自動對焦（AF）功能，可在高速運動的同時以高精度連續捕獲目標物件。它還實現了寬動態範圍，即使在高對比度的戶外環境中也能適當地再現色彩漸變。其高靈敏度可在低光照環境下拍攝低雜訊圖像。這些功能使您能夠以您想要的方式捕捉圖像，即使在迄今為止攝影困難的情況下也是如此。
專業視覺製作的卓越表現力
卓越的漸變再現、對每個小細節的忠實再現以及高清視頻表達的高解析度拍攝為視頻編輯提供了高度的靈活性。此外，高速信號輸出可實現高幀率拍攝，實現出色的慢動作表達。圖像感測器還實現了寬動態範圍，即使在低照度環境中也能捕捉到極低雜訊水準的圖像，並在高亮度環境中產生豐富的漸變。
產品應用：

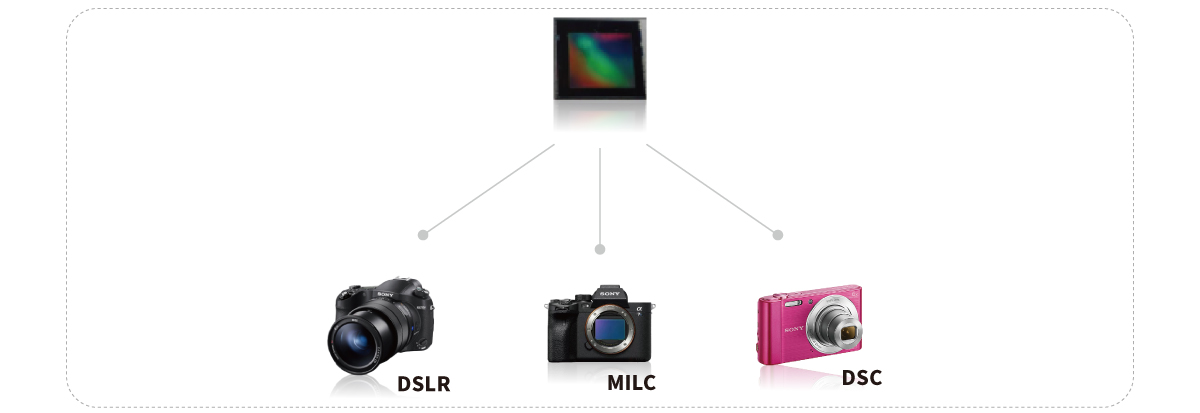

．消費類相機：數位相機/全景相機/運動相機。
．無人機：用於消費類無人機/用於農業類無人機。
．視頻製作設備：Web cam/視訊會議系統。
