SONY > Mobile (CMOS Sensor)
產品種類：
|
產品編號 |
產品規格 |
檔案下載 |
|
1/7” 2M |
Process:BSI Cell size:1.12 um Chip size:3.818 x 2.96 mm Output I/F : MIPI2 lane A/D Converter: 10- bit |
欲知詳細規格 請與業務人員連絡 |
|
1/3.2” 8M |
Process:BSI Cell size:1.12um Chip 6.18 x 5.5 mm Output I/F : MIP2 lane A/D Converter: 10- bit OTP ROM :128 bytes |
|
|
1/3.2” 8M |
Process:BSI Cell size:1.12 um Chip size:6.18 x 5.85 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :512 bytes |
|
|
1/4” 8M |
Process:BSI Cell size:1.12 um Chip size:5.137 x 4.719 mm Output I/F : MIP2 lane A/D Converter: 10- bit OTP ROM :128 bytes |
|
| 1/2.3” 12M | Process:BSI Cell size:1.55 um Chip size:7.564 x 5.476 mm Output I/F : MIPI4 lane A/D Converter: 10-bit/12-bit OTP ROM :7K bit |
|
| 1/2.55” 12M | Process:BSI Cell size:1.4um Chip size:6.793 x 5.668 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :29K bit |
|
| 1/3” 13M | Process:BSI Cell size:1.12 um Chip size:7.186 x 4.774 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :4.5K bit |
|
| 1/3” 13M | Process:BSI (RGBW) Cell size:1.12 um Chip size:5.964 x 4.628 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :7.168K bit |
|
| 1/2.6” 16M | Process:BSI Cell size:1.12 um Chip size:6.285 x 5.4 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :128 bytes |
|
| 1/2.8” 16M | Process:BSI (PDAF/HDR) Cell size:1.12 um Chip size:6.433 x 4.921 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :9K bit |
|
|
1/2.3” 21M |
Process:BSI Cell size:1.2 um Chip size:7.664 x 5.894 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :4K-bit |
|
| 1/2.4” 21M | Process:BSI(PDAF/HDR) Cell size:1.2 um Chip size:7.216 x 5.497 mm Output I/F : MIP4 lane A/D Converter: 10- bit OTP ROM :9K-bit |
|
| 1/2.78” 25M | Process:BSI(HDR) Cell size:0.9 um Chip size:5.848 x 5.110 mm Output I/F : MIP4 lane Data output max 2.3Gbps/lane OTP ROM :9K-bit |
|
| 1/2.0” 48M | Process:BSI(PDAF/HDR) Cell size:0.8 um Chip size:7.504 x 5.659 mm Output I/F : MIP4 lane Data output max 2.5Gbps/lane OTP ROM :28K-bit |
|
| 1/1.56” 50M |
Process:BSI(PDAF/HDR) |
|
| 1/1.73” 64M | Process:BSI(PDAF/HDR) Cell size:0.8 um Chip size:8.638 x 6.460 mm Output I/F : MIPI C-PHY,D-PHY OTP ROM :5K-bit |
產品特色：
．領先業界背照式感光元件
．高感度，低雜訊及低耗電
．含R.G.B三元色精密濾光器
．高傳輸速度及可調式快門

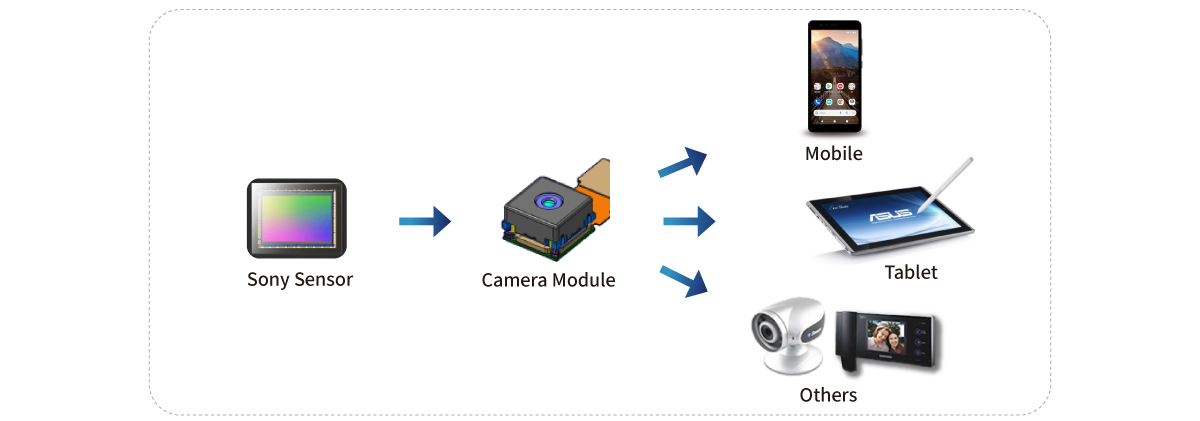

．應用於智慧型手機及平板電腦主鏡頭/前置鏡頭
產品應用：
可廣泛應用於智慧型手機、平板電腦主鏡頭 / 前置鏡頭及其他需照像功能之產品
