分类

产品规格

Photo coupler

Phototransistor Output Type
<Compact, SMT type>  ( PC35X , PC36X , PC41X , PC45X 系列 )
(1) Single phototransistor output
General purpose , high resistance to noise
High collector-emitter voltage
Low input current , AC input response
(2) Darlington phototransistor output
High sensitivity , low input current
High collector-emitter voltage

<Compact, half pitch (lead space) SMT type>  ( PC3HX 系列 )
(1) Single phototransistor output
low-profile package , High resistance to noise
low input current , AC input response
(2) Darlington phototransistor output
High sensitivity , low input current

( PC123X , PC817X , PC851X , PC815X , PC852X , PC853X 系列)
(1) Single phototransistor output
High isolation voltage , reinforced insulation
low input current , high resistance to noise
(2) Darlington phototransistor output
High isolation voltage , high sensitivity , low input current
high collector-emitter voltage

Photo Interrupter

( GP1S0X , GP1S1X , GP1S3X 系列 )
Single phototransistor output
Wide gap , for soldering reflow ,
surface mount compatible, with positioning boss

  ( GP2S700 , GP2S60 )
Single phototransistor output
long focal distance, surface mounting leadless type
surface mounting leadless type

( GP2A2X 系列 )
OPIC output
Multi types of paper detectable, light modulation type,
with connector , sensitivity adjusted
Static electricity resistant , applicable to inverter fluorescent lamp,

IR

IR Detecting Units for Remote Control
(1) With shield case (holder) ( GP1UE2X 系列 )
(2) Strengthened resistance to electromagnetic induction noise ( GP1UXC4X 系列 )

Fiber

Fiber Optic Transmitters
(1) Square Connector  ( GP1FMX ,  GP1FAX , GP1FSX 系列 )
(2) ø3.5 mm Optical Mini-jack ( GP1FD320TP0F )
Fiber Optic Receivers
(1) Square Connector   ( GP1FMX ,  GP1FAX 系列 )

Ambient Light Sensors

( GP1A1X ,  GP1A2X 系列 )
Built-in amplification circuit
Peak sensitivity characteristic close
to human visual sensitivity
Output characteristic: Linear current
output for illuminance
Lead frame (straight) type

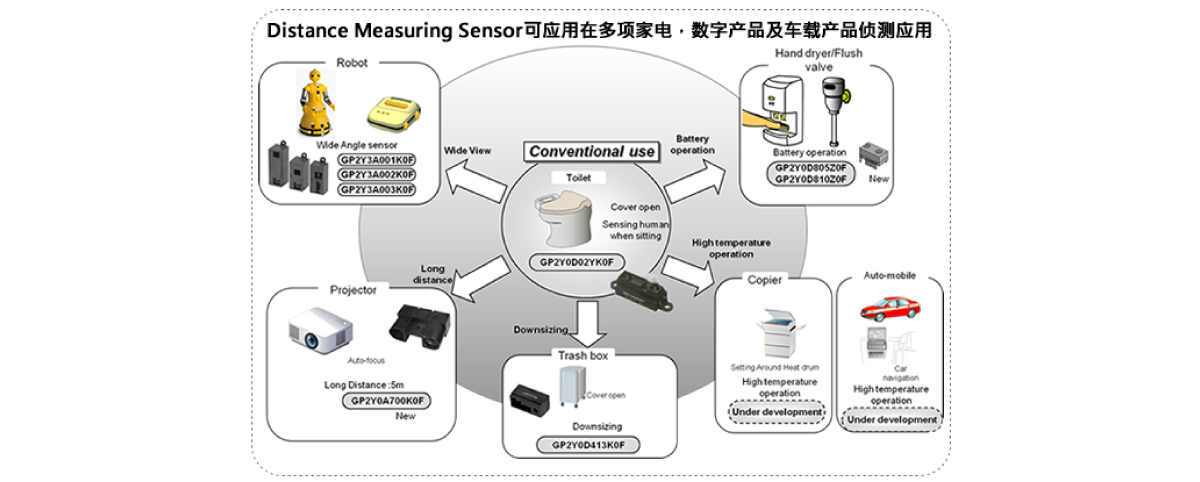

Distance Measuring Sensor

(1) Digital output ( GP2Y0DX 系列 )
Light detector , infrared LED and signal processing circuit,
short distance measuring type , battery drive compatible
(2) Analog output  ( GP2Y0AX 系列 )
Distance measuring sensor united with PSD ,
infrared LED and signal processing circuit , linear voltage output
