．SONY® Super Starlight Sensor
．100% R&D and Made in Taiwan
．Maximum resolution 1920*1080
．Intelligent video analysis
．Supports intelligent analysis of triggers, E-mail and capture image and LINE notification.
．two way audio support
- Overview
- Specification

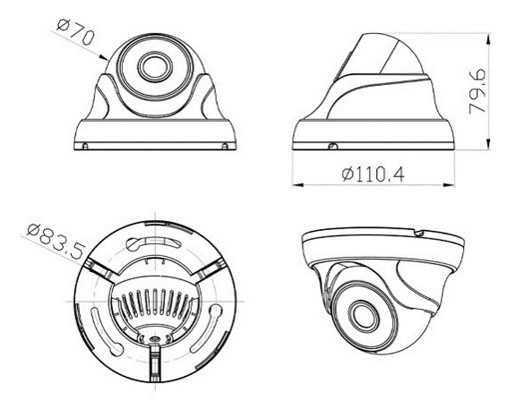

- Dimensions
Using Sony IMX307 CMOS sensor, which has excellent picture quality and lower noise, and Augentix's unique optical flow technology, the camera provides a complete solution for Intelligent IP camera applications.
．SONY® Super Starlight Sensor
．100% R&D and Made in Taiwan
．Maximum resolution 1920*1080
．Intelligent video analysis
．Supports intelligent analysis of triggers, E-mail and capture image and LINE notification.
．two way audio support
| Model | NH-201 2MP |
| Sensor | SONY IMX307 (1/2.8" CMOS) |
| Low Lux | B/W：0.01 Lux，0 Lux with IR |
| Lens | 2.7mm-12mm Manual focus lens |
| IR | 12 array type infrared lamps, effective distance of infrared lamps is 20M. |
| WDR | D-WDR |
| Noise Reduction | Support 2DNR/3DNR |
| Encoder | H.264 / H.265 / MJPEG |
| Bit Rate Mode | CBR, VBR |
| Resolution |
Main (H.264/H.265/MJPEG)： |
| Browser | Microsoft Edge |
| IVA Setting | Damage detection, Area detection, Cross-line detection, Sound detection |
| Camera Setting | Overall Brightness, Object Brightness，Saturation, Hue, Contrast,，Sharpness |
| Protocol | support ONVIF |
| Audio | 2.7mm-12mm Microphone in、 Speaker out |
| Power Supply | DC 12V/PoE |
| LAN | RJ45 10M / 100M |
‧Specifications are subject to change without notice.
