ST-201 2MP IP Camera module Series
ST-201 2MP IP Camera module Series

.1./2.8" Sony Sensor
.1080P real-time, high-definition, high-resolution video
.H.265 video compression
.Support for plug-in PoE module
.Single board modular design
.Suitable for security surveillance applications
.Integrated IVA image recognition (Tamper detection, ROI detection)

  • Overview
  • Specification
  • Dimensions

The module features the Sony IMX307 CMOS image sensor for outstanding image quality and low noise. Augentix’s proprietary Optical Flow technology is incorporated to provide a total solution for the development of smart Network Camera solutions.

.1./2.8" Sony Sensor
.1080P real-time, high-definition, high-resolution video
.H.265 video compression
.PoE support
.Support for plug-in PoE module
.Single board modular design
.Suitable for security surveillance applications
.Integrated IVA image recognition (Tamper detection, ROI detection)


Contact Information
Butter Lee(Taiwan)
Contact number:886-2-8797-3566 #2533
phone number:0986-887-228
customer service hotline:02-8797-3455

Shawn Chien(Singapore)
Contact number:+65 89380269

 J. Senthil Kumar(India)
Contact number:+91 85080 24918

Model ST-201
Image Unit HC1703 ; 1/2.8" Sony IMX307 CMOS
Minimum illumination Color [email protected] ; B/W [email protected]
Signal-to-Noise Ratio ≧50db(AGC off)
Wide Dynamic Range >78db
Flash storage 128MB
Memory 64MB
Onvif Support Yes
Browser IE/Firefox/Chrome/Safari
CGI Support
Mobile Phone Support Support for browsing and configuration over mobile phone
Auto IRIS X
Local storage X
Smart recognition Tamper detection, ROI detection, Line Crossing detection, Object detection
Audio input 1CH MIC In/ Line In pin
Audio output Audio output port
CVBS output X
Storage interface X
I/O Interface X
I/O function IR filter *1, IR light *1
Internet 10/100 Mbps
Image Compression Format H.265 / H.264 / MJPEG
Image Resolution Mainstream:1920*1080
Sub-stream: 1280*720, 640*480
Transmission 64-4096Kbps, Support CBR-VBR
Operating/
Storage Temperature
-10°~50° / -20°~60°
Operating/
Operating Humidity
80%RH / 90%RH
Power Supply DC12V / PoE Option
Power Consumption 3W(Max)

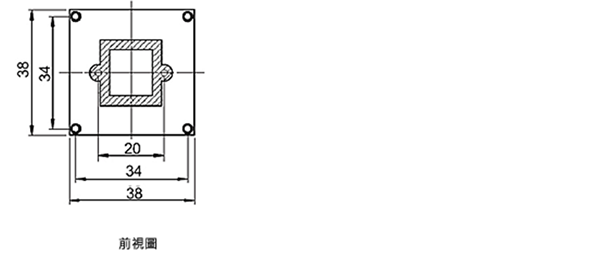

Dimensions 38(L)*38(W)mm

‧Specifications are subject to change without notice.
