2022-07-18 Sunnic 2MP High-Resolution Network Camera Solution

Rapid advances in the security and surveillance industry mean Network cameras are now used in even more diverse scenarios. To meet the growing market demand from smart city-related applications, SUNNIC has developed surveillance camera modules and products to meet the requirements of various monitoring applications including theft prevention, disaster warning, and traffic monitoring.

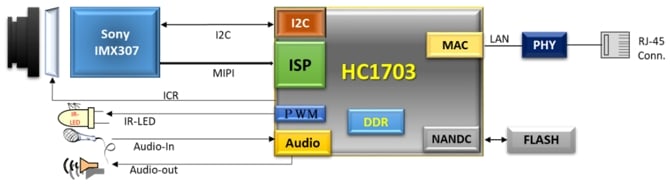

The 2MP camera module developed by Sunnic is based on the Sony Starvis IMX 307 image sensor for enhanced low-light performance for high-quality images and less noise. The camera module is integrated with Augentix’s high-performance IC and unique lightstream technology to offer advanced H.265 video compression technology. H.265 reduces bandwidth consumption by 40% to 50% compared to H.264. Functions such as tamper detection, moving object detection and tracking, ROI detection and line crossing detection are supported as well. Power-over-Ethernet (POE) is included to satisfy customers’ need for a total solution for smart network camera applications.
Module specifications:



2M IP Camera

Image Unit

1/2.8" Sony IMX307

Image processor

Augentix HC1703

Minimum illumination

IMX307: [email protected]

Signal-to-Noise Ratio

≧37db (Automatic gain disabled)

Wide Dynamic Range

>78db

Flash storage

128MB

Memory

64MB

ONVIF Support

Yes

Browser support

Camera can be configured through Microsoft browser

Intelligent Video
Analysis (IVA)

Tamper detection, ROI detection,
Line Crossing detection, Object tracking

Two-way voice

Support (Mic input, speakers)

Image Compression Format

H.265 /H.264

Image Resolution

Main stream: 1920*1080 @30 fps

Sub stream: 640*480@30 fps (max)l 1280*720@30fps (max)

Bit control mode
(Bitrate Control)

Main stream: 32 - 8000 Kbps; Sub-stream: 32 ~ 8000 Kbps
CBR-VBR supported

Internet

10/100 Mbps

Operating Temperature/
Storage Temperature

(-10° ~ 50°/-10° ~ 60°)

Power Supply

DC12V/PoE Support

Dimensions

38(L)*38(W)*1pc
