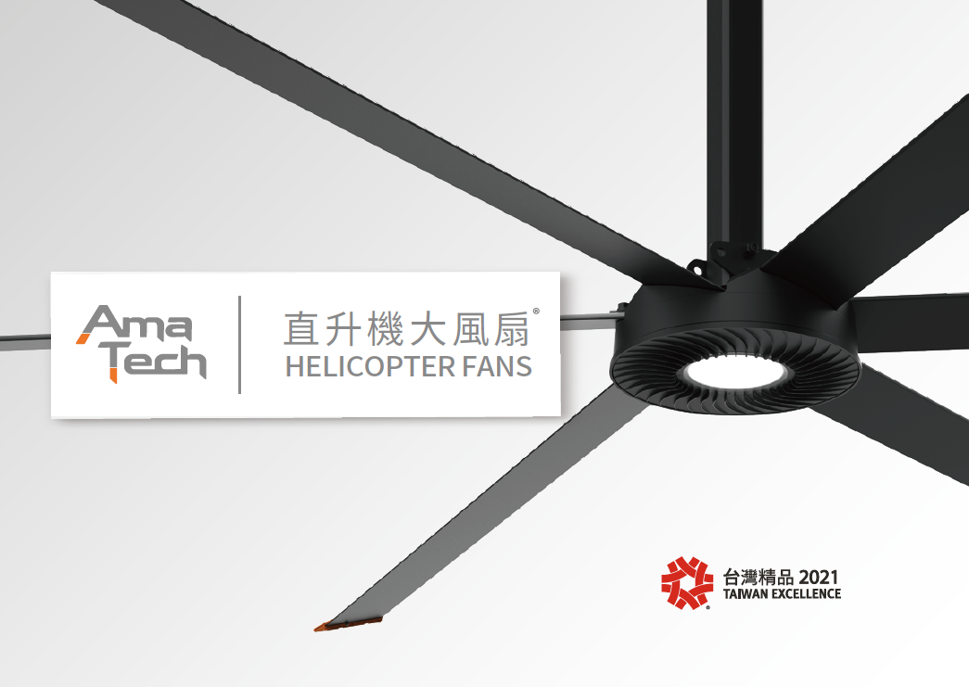

Helicopter-Style Large Fan
-High Volume Low Speed-
The Most Comfortable Wind on Earth
Successfully cracked the secret of natural wind,
perfectly replicating the most comfortable wind on Earth with a wind speed in the golden ratio of about 1-3m/s.
Perceptible High Airflow
The aerospace-grade fan blade design combined with low-speed mode,
successfully stirs the airflow across a large area, generating a strong, perceptible airflow.
Energy-saving and Power-efficient
Can completely replace small fans (which are less effective and consume more power).
In tests, a 7-meter large fan achieves full coverage of over 1,300 square meters (approximately 400 pings).

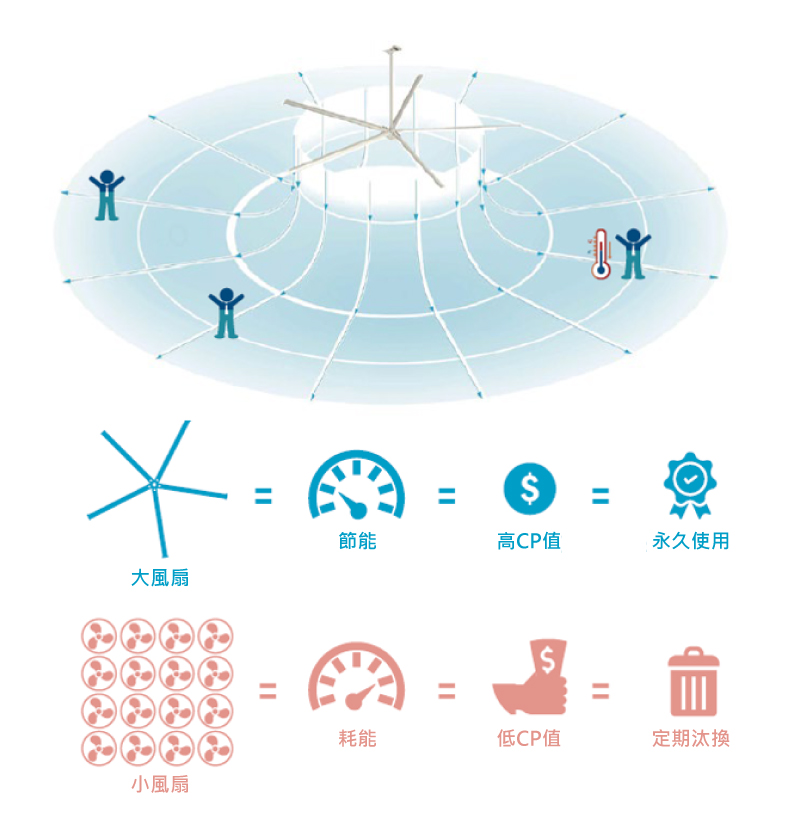

Oxygen-enriched Circulation
Utilizing the HVLS operating mode, it creates large open-space air circulation,
increasing the oxygen content in the air, and providing a healthy and comfortable environment.
 |
 |
|

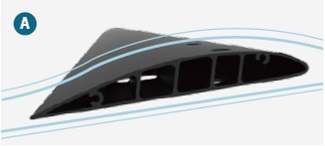

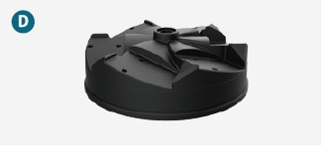

| Aerospace-grade precision fan blade design | Integrated molded aluminum alloy housing | |
| Made from imported high-strength aluminum alloy, featuring a four-rib structure to improve quality and enhance safety factors. | A world-first manufacturing technique, using the same casting technology as engine casings. | |
 |
 |
|

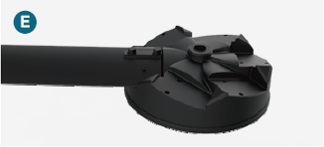

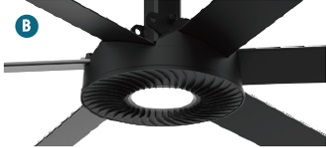

| High-power energy-saving LED pendant light | Embedded blade assembly structure | |
| Equipped with a replaceable high-power 100W LED light assembly, offering a long service life. | Breaking industry standards of external snap-on attachments, using a patented embedded design for superior safety and resistance to external impact. | |
 |
 |
|

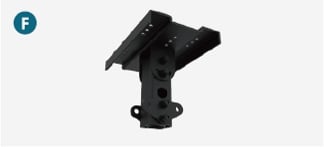

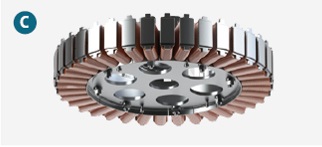

| Super silent DC inverter motor | Safety suspension device | |
| Utilizes elevator-grade rare earth neodymium iron boron, paired with the industry's highest density exclusive pure copper winding technology. | Certified by SGS to safely support loads of over 500 kilograms. |
Product Specifications:
| Model | AE-2 | AE-2.5 | AE-3 | AE-3.7 |
| Fan Diameter (M) | 2 | 2.5 | 3 | 3.6 |
| Fan Diameter(FT) | 6" | 8" | 10" | 12" |
| Maximum Speed(RPM) | 130 | 120 | 110 | 100 |
| Load Current(A) | 0.4 | 0.6 | 1.1 | 1.6 |
| Voltage(V) | 200-240 | 200-240 | 200-240 | 200-240 |
| Maximum Coverage Area(m2) | 205 | 275 | 300 | 450 |
| Full Load Air Flow(m3/min) | 2530 | 3360 | 5630 | 7290 |
| Noise Level(dB) | <40 | <40 | <40 | <40 |
| Number of Blades | 6 | 6 | 6 | 6 |
| Fan Body Weight (KG) | 19 | 21.5 | 24 | 27 |
