Product Category：
IP CAM
| Product | Specifications | Download |
| HC1783S | ARM Dual CA7@1GHz 12M@15fps Support Dual sensor Support RGBIR,RGBW |
For detailed specifications, please contact sales personnel. |
| HC1753 | ARM Dual CA7@1GHz 8M@18fps Support Dual sensor Support RGBIR,RGBW 128 MB DDR |
|
| HC1725 | ARM CA7@900MHz 5M@24fps Fast boot 128 MB DDR |
|
| HC1723 | ARM CA7@900MHz 5M@24fps Support Dual sensor 128 MB DDR |
|
| HC1703 | ARM CA7@900MHz 3M@30fps Support RGBIR,RGBW 64 MB DDR |
Product Features：

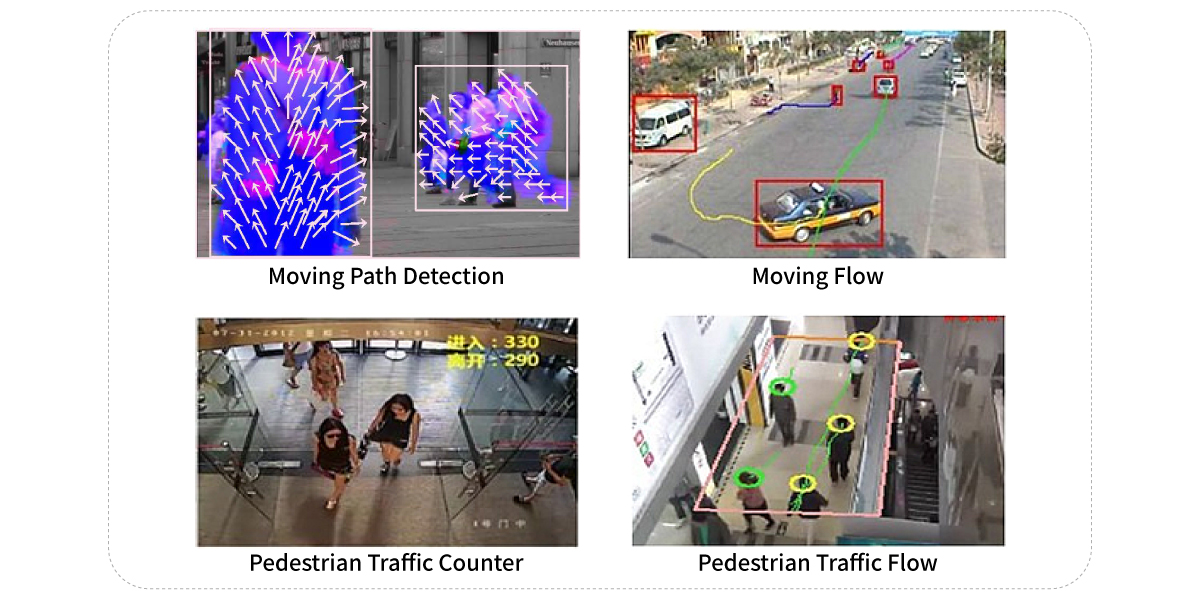

Optical Flow Application
Optical flow is a method to find the corresponding relationship between the previous one and the current one by using the changes of primitives in the time domain and the correlation between adjacent frames in the image sequence, so as to calculate the motion information of objects between adjacent frames.
Through the built-in unique optical flow function of Augentix SOC, it can realize the functions of object moving direction detection, moving track, people flow counting, people flow track, etc.

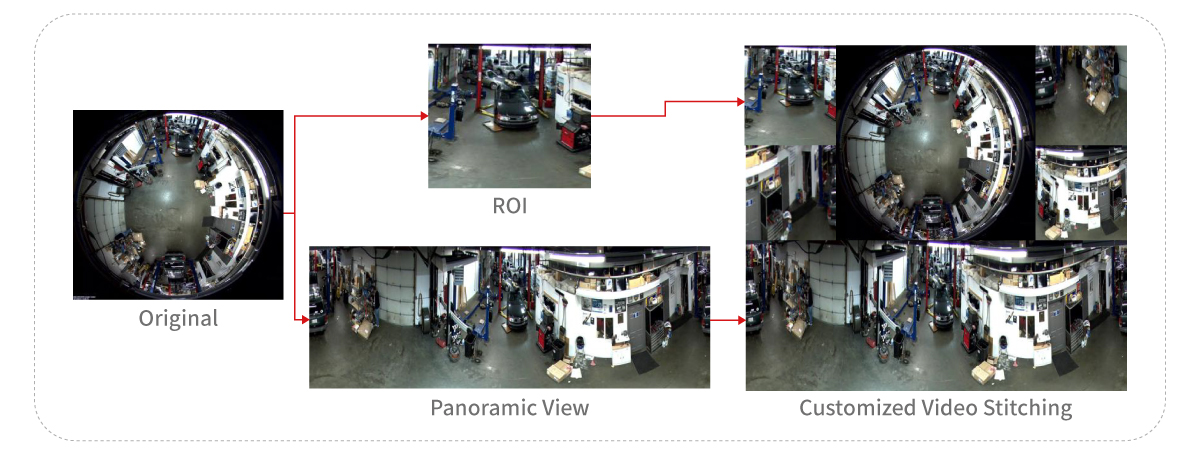

Fisheye De-Warping:
The built-in Fisheye De-warping function of Augentix SOC can extend the panoramic picture and correct it.
2M ST-201Product Solution
SPEC:
|
Sensor |
1/2.8" Sony IMX307LQR CMOS |
|
SOC |
HC1703 |
|
Low Lux |
Color : 0.5Lux@F2.0; |
|
S/N Ratio |
≧50db(AGC Off) |
|
WDR |
＞80db |
|
Flash |
128MB |
|
RAM |
512MB |
|
ONVIF |
Support |
|
Browaser |
Microsoft Edge |
|
Intelligent Video Analytics(IVA) |
Tampering Detection、Electronic Fences、Line crossing detection、Motion detection |
|
Audio |
1ch MIC in/Line In pin (option) |
| Encoder | H.265 /H.264;MJPEG |
| Resolution | 1920*1080 @30 fps |
|
Bitrate Control |
32 - 8000 Kbps |
| Support CBR-VBR | |
| Interface | RJ-45 |
| LAN | 10/100 Mbps |
| Operation Temp/Storage Temp | (-10° ~ 50°/-10° ~ 60°) |
| Operation Humility/Storage Humility | 80%RH/90%RH |
| Power Supply | DC12V/Support PoE |
| PCB Size | 38*38mm*1 |
5M ST-293Product solution：
5M ST-293Product SPEC:
|
Image Sensor |
1/2.8" Sony IMX327 /IMX335 CMOS |
|
SOC |
HC1783S |
|
Low ill umination |
IMX327: 0.001Lux@F2.0; IMX335: 0.1Lux@F2.0; |
|
Signal to Noise Ratio |
≧50db(AGC Off) |
|
WDR |
＞80db |
|
Flash |
128MB |
|
DDR |
4Gb |
|
Suppot ONVIF |
Support |
|
Support Web |
Support Microsoft Edge IE set-up |
|
IVA |
Damage detection、Area detection、Trip Line detection、Object detection |
|
Two way audio |
Support (Mic,Speaker) |
|
Storage |
Micro SD |
|
Image Encoder |
H.265 /H.264;MJPEG |
|
Image resolution Multi-Stream |
2592*1944、1920*1080 @30 fps (max) ; Maximum: 2ch Output |
|
640*480@30 fps(max); QVGA (240x320) @30fps(max); Maximum: 3 ch Output |
|
|
Bitrate Control |
Bitrate :64 - 4096 Kbps Support CBR-VBR |
|
Interface |
RJ-45 |
|
Ethernet |
10/100 Mbps |
|
Working Temperature |
(-10° ~ 50°/-10° ~ 60°) |
|
Working humidity |
80%RH/90%RH |
|
Power |
DC12V/Support PoE |
|
Size |
38(L)*38(W)*2pcs (Main Board 、Sensor Board) |

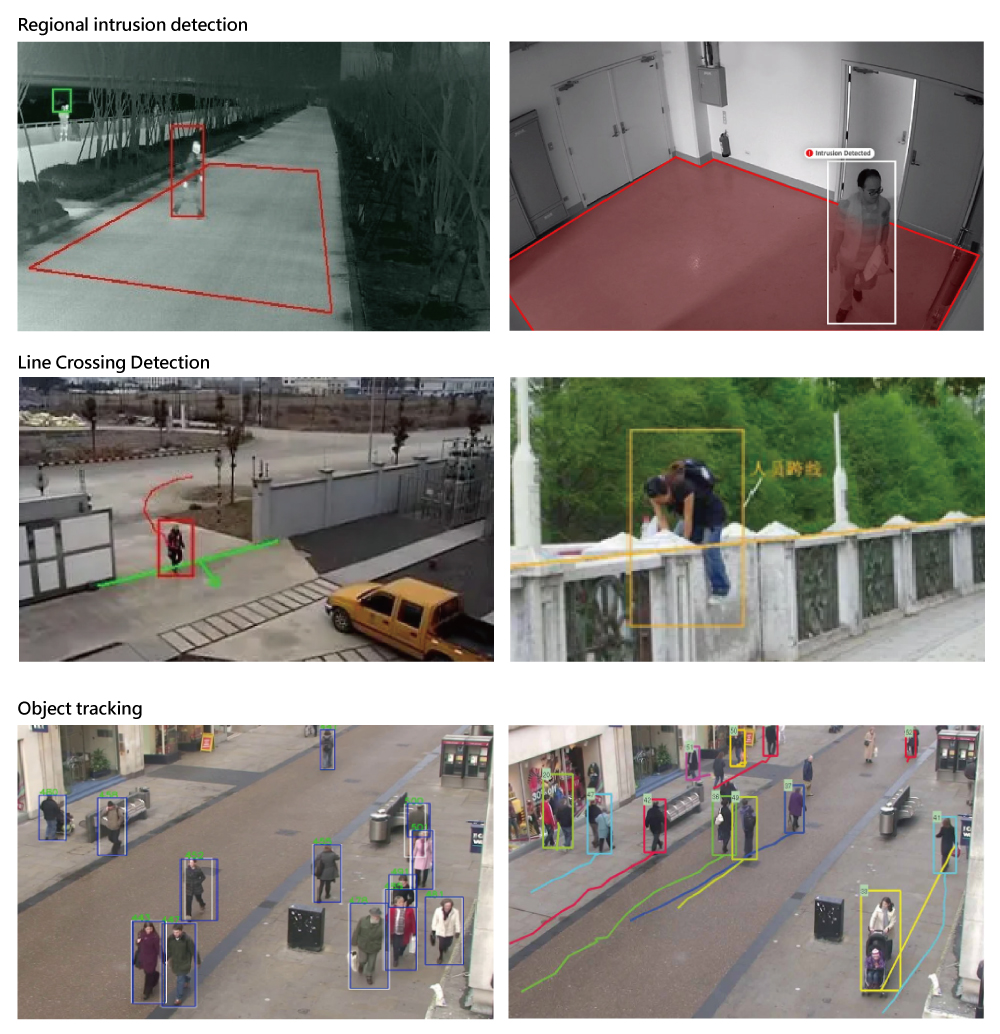

Intelligent Video Analytics solution:

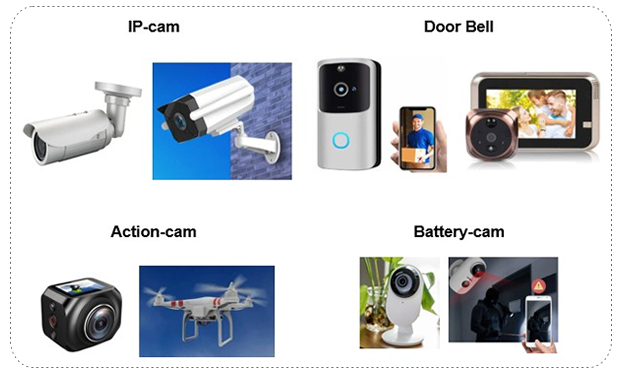

Product Application：
|
