SHARP > OPTO
產品種類 ：
|
分類 |
產品規格 |
檔案下載 |
|
Photo coupler |
DIP 4pin General purpose type Product : PC817series MOQ / LTD 40K/3M 1. PC817X1CSP9F 2. PC817X2CSP9F 3. PC817X3CSP9F 4. PC817X4CSP9F |
欲知詳細規格 請與業務人員連絡 |
| DIP 4pin General purpose type Product : PC817series MOQ / LTD 24K/3M 1. PC817X1NSZ9F 2. PC817X2NSZ9F 3. PC817X3NSZ9F 4. PC817X4NSZ9F |
||
|

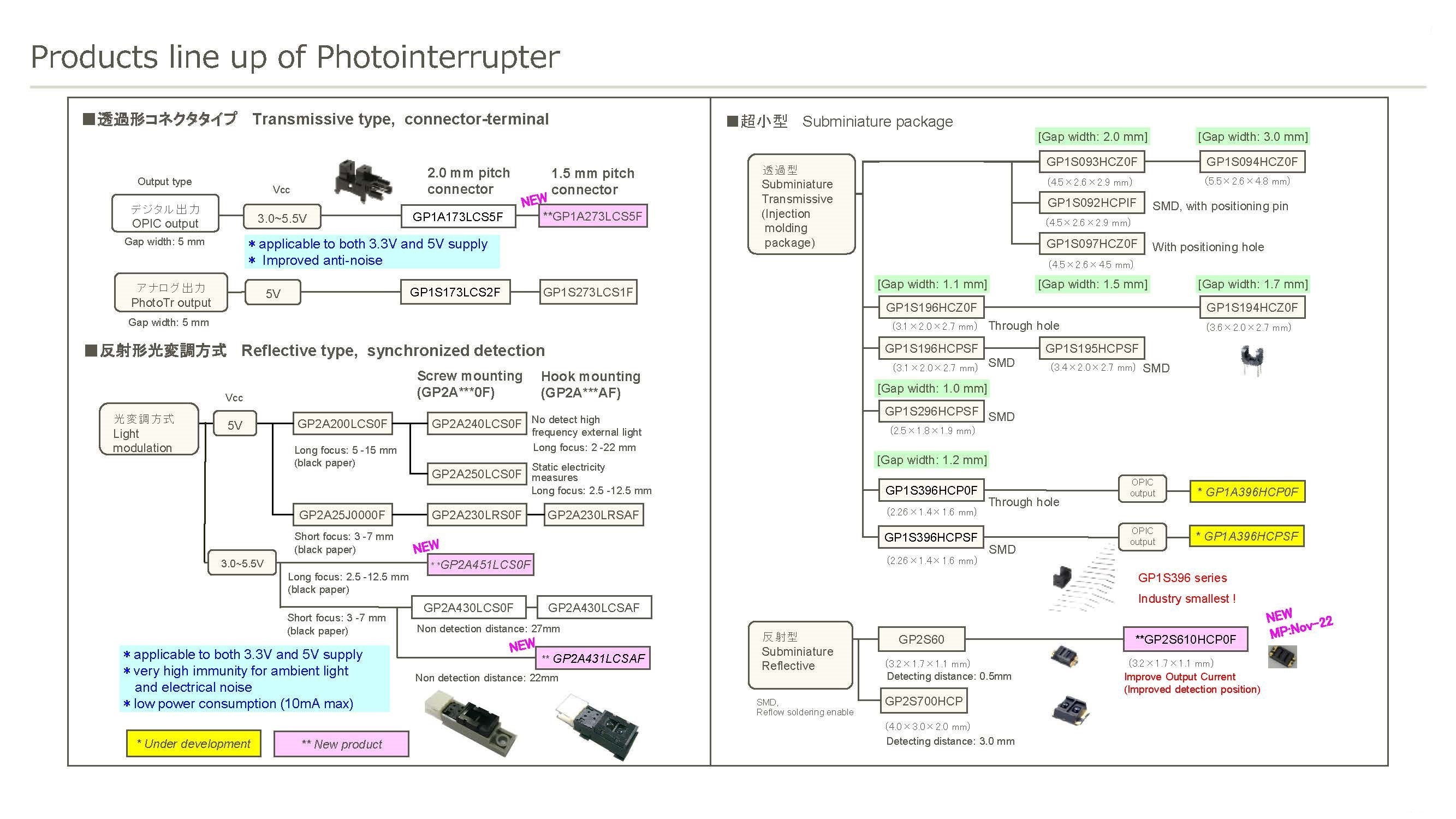

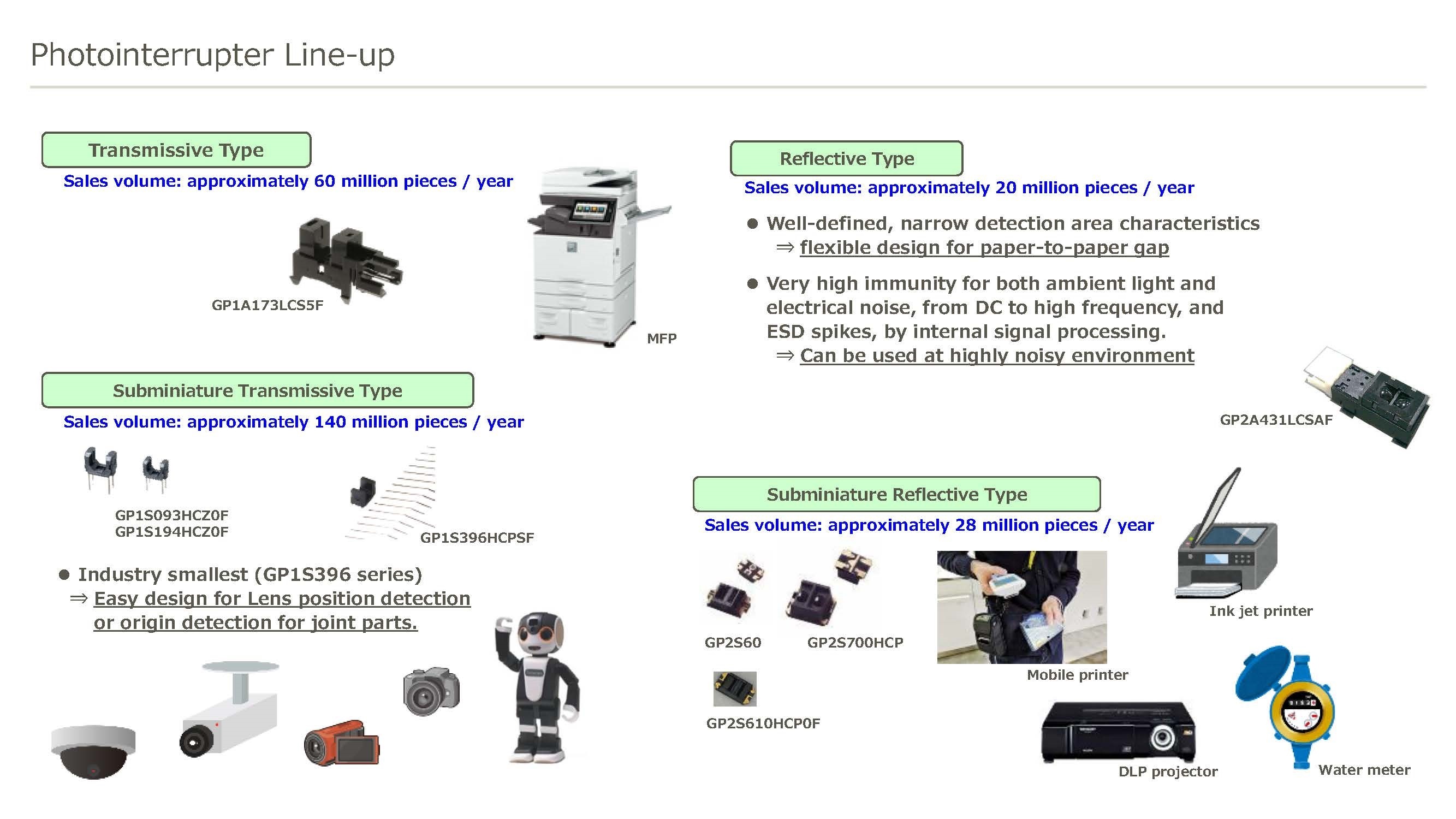

Photo Interrupter |
＜Transmissive type＞＜Compact type＞ ( GP1S0X , GP1S1X , GP1S3X 系列 ) Single phototransistor output Wide gap , for soldering reflow , surface mount compatible, with positioning boss |
|
| ＜Reflective type＞＜Compact＞ ( GP2S700 , GP2S60 ) Single phototransistor output long focal distance, surface mounting leadless type surface mounting leadless type |
||
| ＜With 3-pin connector terminal＞ ( GP2A2X 系列 ) OPIC output Multi types of paper detectable, light modulation type, with connector , sensitivity adjusted Static electricity resistant , applicable to inverter fluorescent lamp, |
||
|
IR |
IR Detecting Units for Remote Control (1) With shield case (holder) ( GP1UE2X 系列 ) (2) Strengthened resistance to electromagnetic induction noise ( GP1UXC4X 系列 ) |
|
|
Fiber |
Fiber Optic Transmitters (1) Square Connector ( GP1FMX , GP1FAX , GP1FSX 系列 ) (2) ø3.5 mm Optical Mini-jack ( GP1FD320TP0F ) Fiber Optic Receivers (1) Square Connector ( GP1FMX , GP1FAX 系列 ) |
|
|
Ambient Light Sensor |
( GP1A1X , GP1A2X 系列 ) Built-in amplification circuit Peak sensitivity characteristic close to human visual sensitivity Output characteristic: Linear current output for illuminance Lead frame (straight) type |
|
|

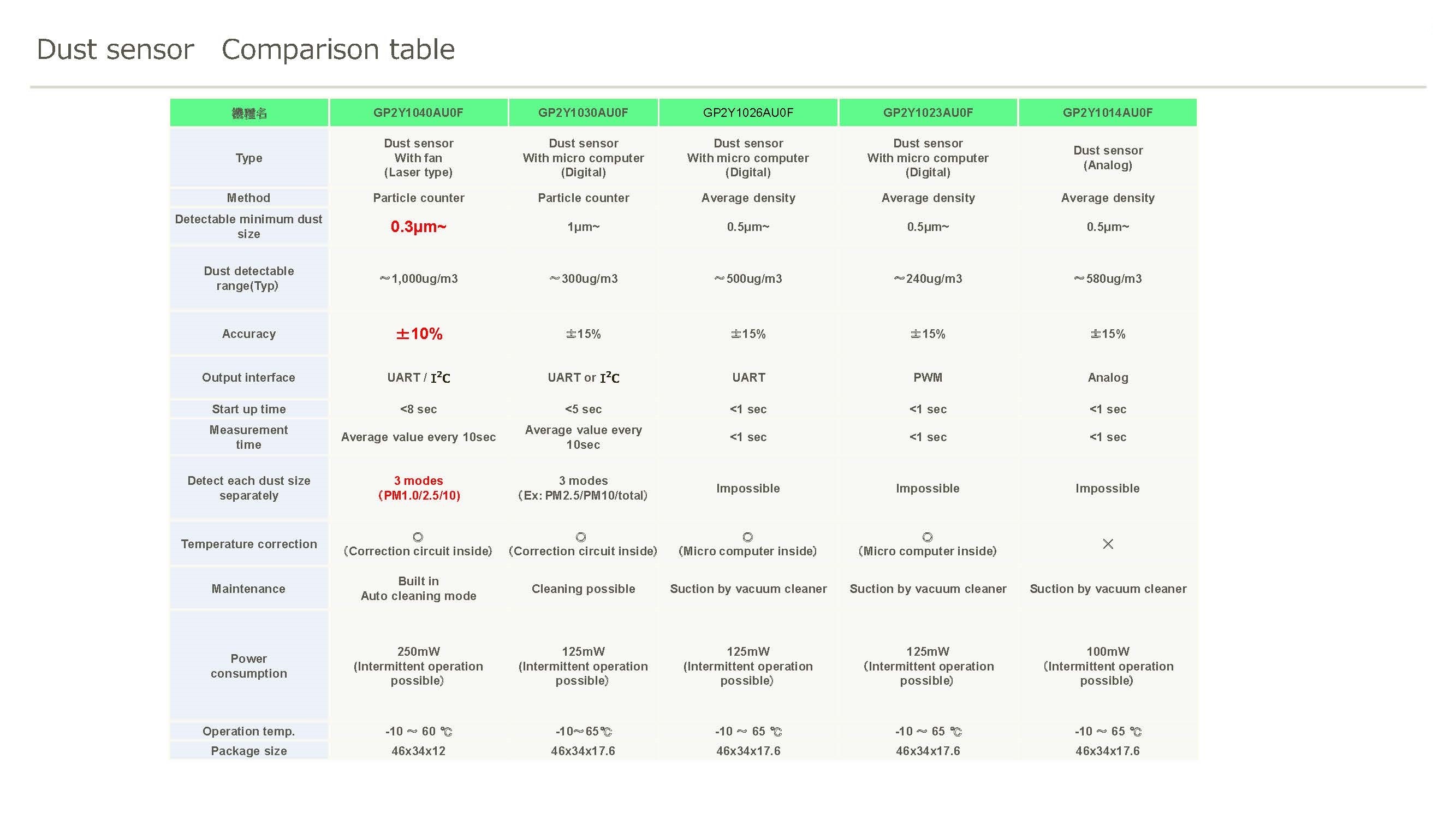

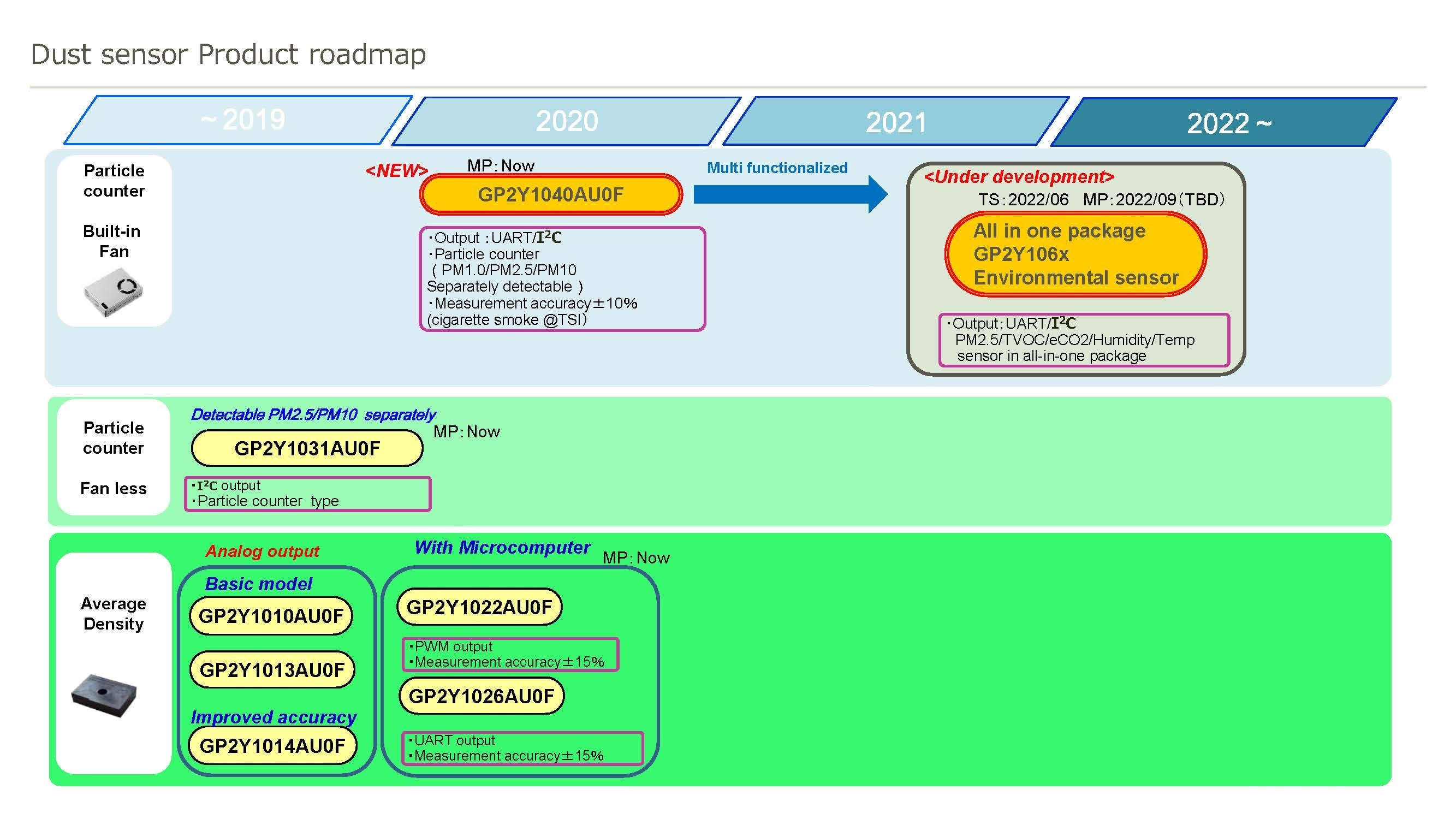

PM2.5 Dust Sensor |
SHARP PM2.5 Dust Sensor(GP2Y1010AU0F) This specification applies to the outline and characteristics of Model No.GP2Y1010AU0F (Dust sensor) |
|
| SHARP PM2.5 Dust Sensor(GP2Y1023AU0F) High sensitivity This specification applies to the outline and characteristics of Model No.GP2Y1023AU0F (Dust sensor) |
||
| SHARP PM2.5 Dust Sensor(GP2Y1026AU0F) High accuracy. Built-in Microprocessor Dust concentration is converted to Uart signal output. No need for offset correction nor averaging in set This specification applies to the outline and characteristics of Model No.GP2Y1026AU0F (Dust sensor) |
||
| SHARP PM2.5 Dust Sensor(GP2Y1030AU0F) Particle counter method by new original control IC Selectableparticle size (PM2.5/PM10) This specification applies to the outline and characteristics of Model No.GP2Y1030AU0F (Dust sensor) |
||

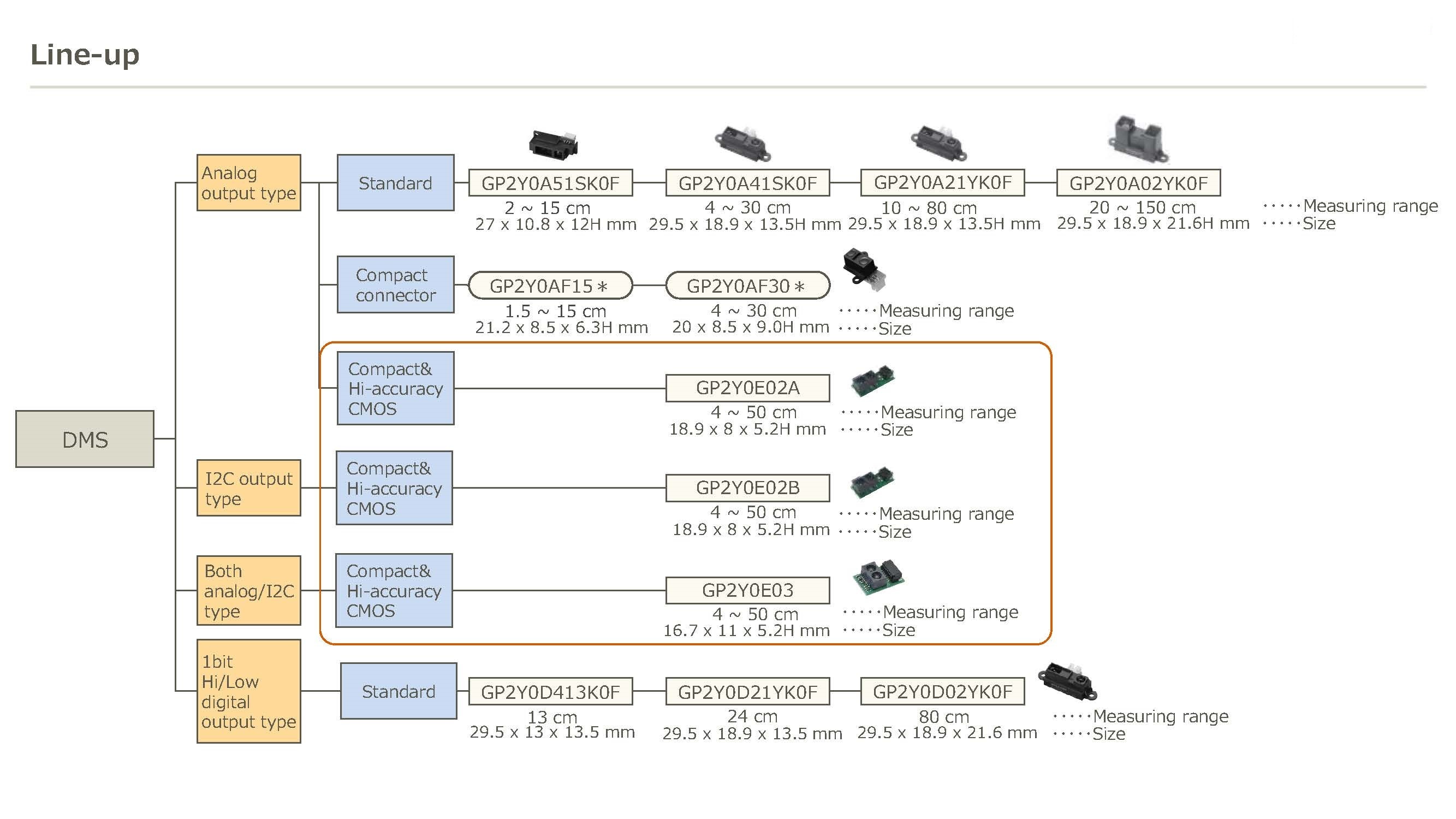

| Distance Measuring Sensor | DMS(GP2Y0A51SK0F) Distance: 2cm to 15cm , Output type: Analog voltage , Dimension: 27mm x 10.8mm x 12mm |
|
| DMS(GP2Y0AF15Q) Distance:1.5cm to 15 cm, Output type: Analog voltage , Dimension: 20mm x 8.5mm x 6.3mm |
||
| DMS(GP2Y0A02YK0F) Distance:20cm to 150 cm, Output type: Analog voltage , Dimension: 29mm x 13mm x 21.6mm |
||
| DMS(GP2Y0E02A) Distance:4cm to 50 cm, Output type: Analog voltage , Dimension: 18.9mm x 8mm x 5.2 mm |
||

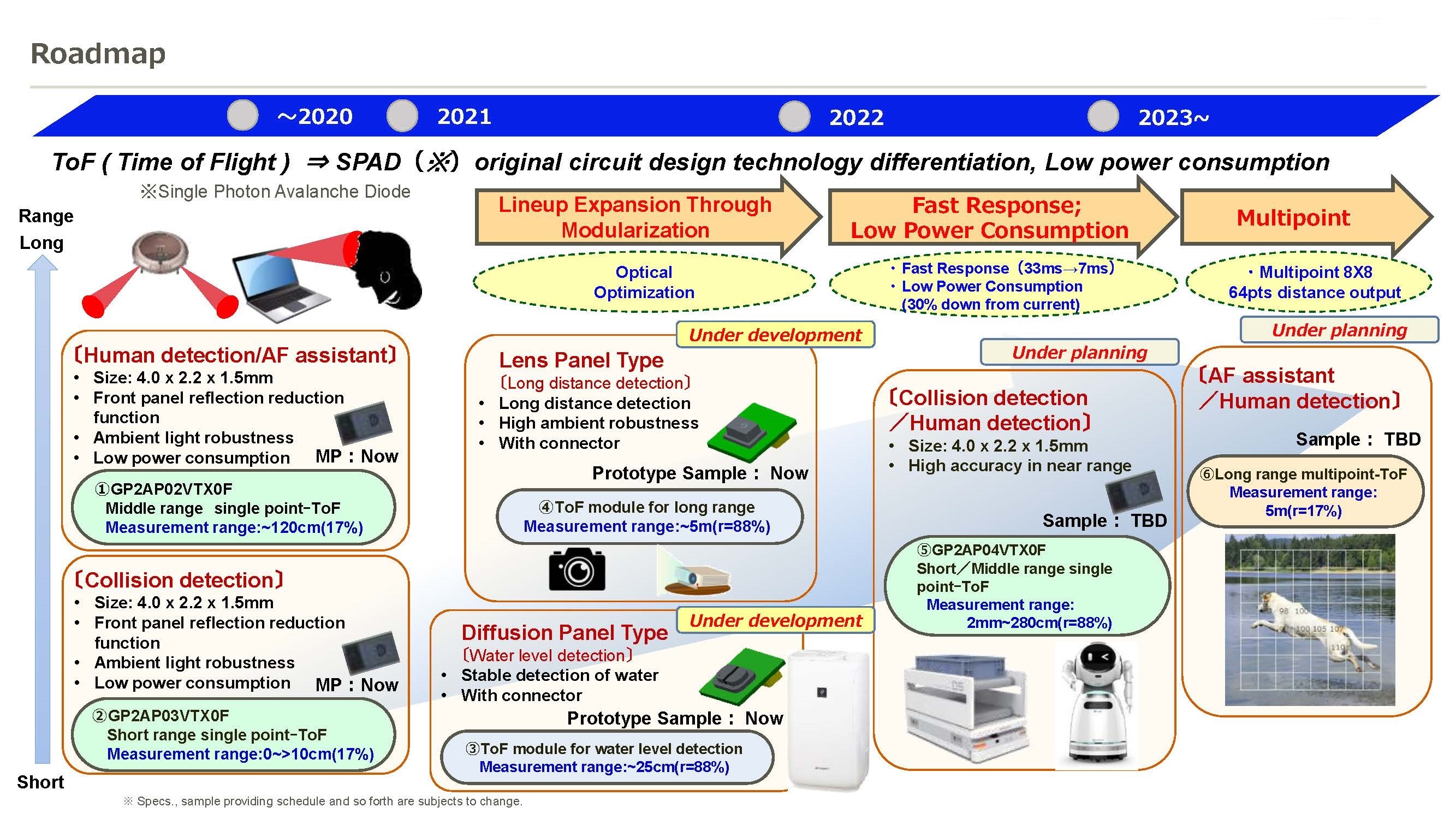

| Laser Sensor | GP2AP01VT10F All in one（ SPAD detector, IR-VCSEL emitter ） Small package : 4.4×2.4×1.0 mm ToF sensing using low-cost standard CMOS process Eye safe optimization by excellent light emission drive circuit Realization of low crosstalk noise due to ceramic structure |
|
| GP2AP02VT00F All in one( SPAD detector, IR-VCSEL emitter ) Small package: 3.6×2.2×1.0 mm Additional Proximity function 2cm on ⇔ 6cm off Small window correspondence 2.7mmφ～ S/N improvement; 1.TDC circuit: Each distance detection with internal histogram ＝Back ground detectable Robust cross talk (Panel reflection) 2.Lens on receiver, Improved optical filter→ Tolerant of sunlight noise |
產品應用：.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
