．100% Designed and Manufactured in Taiwan
．Supports Two-Way Audio
．Supports Digital Alarm Trigger and Real-Time Snapshot with Line Notify Instant Message Notification
．Supports Google Drive Cloud Storage
．Supports SD Card Recording (Optional)
．Supports Customized User Interface
．Supports Auto Digital PTZ (Optional)
．Supports ONVIF Profile S, T, and G
- Overview
- Specification

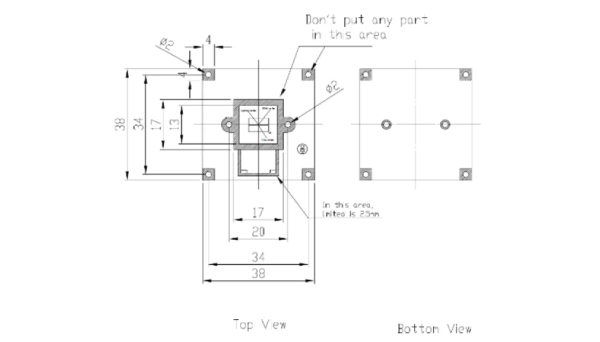

- Dimensions
．100% Designed and Manufactured in Taiwan
．Supports Two-Way Audio
．Supports Digital Alarm Trigger and Real-Time Snapshot with LINE Notify Instant Message Notification
．Supports Google Drive Cloud Storage
．Supports SD Card Recording (Optional)
．Supports Customized User Interface
．Supports Auto Digital PTZ (Optional)
．Supports ONVIF Profile S, T, and G
Contact Information
|
Butter Lee (Taiwan) |
Shawn Chien (Singapore) |
J. Senthil Kumar (India) |
| Model | ST-530 5MP |
| Image Processor | Qualcomm HC-1726 (Built-in 128MB Memory) |
| Image Sensor | SOI JX-K05 (1/2.5" CMOS) |
| Minimum Illumination | B/W: 0.01 Lux, 0 Lux with IR |
| Wide Dynamic Range | Digital Wide Dynamic Range (DWDR) |
| Digital Noise Reduction | Supports 2DNR / 3DNR |
| Video Compression | H.264 / H.265 / MJPEG |
| Bit Rate Control | CBR (Constant Bit Rate) & VBR (Variable Bit Rate) |
| Video Stream | Stream 1 (H.264 / H.265 / MJPEG): 2960 × 1660 @25fps or 2690 × 1528 @25fps 2048 × 1536 @30fps or 1920 × 1080 @30fps Stream 2 (H.264 / H.265 / MJPEG): 720 × 400 @30fps or 640 × 480 @30fps |
| Browser Support | Configuration via Microsoft Edge Browser |
| Intelligent Video Analytics | Tampering Detection, Motion Detection, Virtual Fence, Sudden Noise Detection |
| Image Adjustment | Brightness, Target Brightness, Saturation, Hue, Contrast, Sharpness |
| Digital PTZ | Supports Auto Digital PTZ |
| SD Card Recording | Supports SDIO Interface with Optional SD Card Socket Module, Up to 1TB SD Card |
| Digital Alarm I/O | Alarm In/Out I/O Pins, Compatible with External Isolated DIDO Board |
| Date & Time | Automatic Time Synchronization or Manual Time Setting (Sync with PC), Scheduled Reboot Supported |
| Two-Way Audio | Audio Input / Output Supported |
| Power Supply | DC 12V / PoE (Optional) |
| Network Interface | RJ45 10/100 Mbps Ethernet |
• Specifications are subject to change without prior notice.
