ST-520 4MP IP Camera module Series
ST-520 4MP IP Camera module Series
．100% Taiwan R&D and manufacturing
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Supports Google Drive cloud storage
．Supports SD card recording
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
- Overview
- Specification

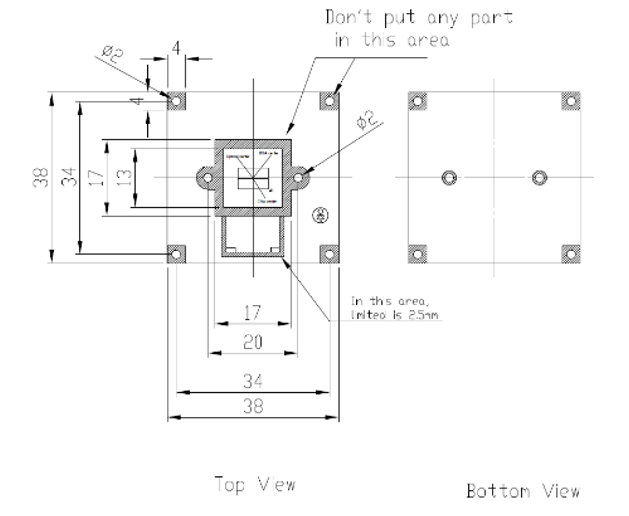

- Dimensions
Adopting the SOI JX-K302P CMOS sensor, it provides excellent image quality and lower noise. With the unique optical flow technology developed by Augentix, it offers a complete solution for smart network camera applications.
．100% Taiwan R&D and manufacturing
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Supports Google Drive cloud storage
．Supports SD card recording
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Supports Google Drive cloud storage
．Supports SD card recording
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
| Model | ST-520 4MP |
| SoC | Augentix HC-1753(Built-in 128MB memory) |
| Sensor | SOI JX-K302P (1/2.9" CMOS) |
| Low Lux | B/W：0.01 Lux，0 Lux with IR |
| WDR | D-WDR |
| Noise Reduction | 2DNR/3DNR |
| Encoder | H.264 / H.265 / MJPEG |
| Bit Rate Mode | CBR,VBR |
| Resolution | Main(H.264/H.265/MJPEG)： 2592x1520@25fps, 1920x1080@30fps Sun(H.264/H.265/MJPEG)： 1280x720@30fps, 640x480@30fps |
| Browser | Microsoft Edge |
| IVA Setting | Tamper detection, area detection, virtual fence, noise burst detection |
| Camera Setting | Brightness, target brightness, saturation, hue, contrast, sharpness |
| Digital Panning | Supports automatic digital pan-tilt-zoom (PTZ) |
| SD Card錄影 | SDIO interface available, compatible with SD card socket module board, supports up to 1TB SD card |
| Digital Alarm I/O | Equipped with Alarm In/Out I/O pins, can be used with backend isolated DIDO hardware board |
| Date/Time | NTP, Manual Sync. (with PC time), Scheduled reboot |
| Audio | Supports audio input/output |
| Power Supply | DC 12V/POE Option |
| LAN | RJ45 10M / 100M |
‧Specifications are subject to change without notice.
