ST-510 2MP IP Camera module Series
ST-510 2MP IP Camera module Series
．100% Taiwan R&D and manufacturing
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Google Drive cloud storage
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
- Overview
- Specification

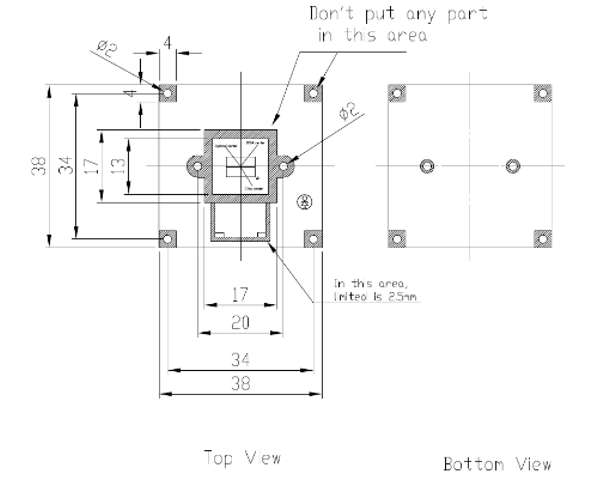

- Dimensions
Adopting the SOI JX-F355P CMOS image sensor, it provides excellent image quality and lower noise. With the unique optical flow technology developed by Augentix, it offers a complete solution for smart network camera applications.
．100% Taiwan R&D and manufacturing
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Google Drive cloud storage
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
．Supports two-way voice communication
．Digital alarm trigger and real-time snapshot with Line Notify for instant message delivery
．Google Drive cloud storage
．Supports customized interface modifications
．Supports automatic digital pan-tilt-zoom (PTZ)
Contact Information
| Butter Lee(Taiwan) Contact number：886-2-8797-3566 #2533 phone number：0986-887-228 customer service hotline：02-8797-3455 |
Shawn Chien(Singapore) |
J. Senthil Kumar(India) |
| Model | ST-510 2MP |
| SoC | Augentix HC-1723(Built-in 128MB memory) |
| Sensor | SOI JX-F355P (1/2.8" CMOS) |
| Low Lux | B/W：0.01 Lux，0 Lux with IR |
| WDR | D-WDR |
| Noise Reduction | 2DNR/3DNR |
| Encoder | H.264 / H.265 / MJPEG |
| Bit Rate Mode | CBR,VBR |
| Resolution | Main (H.264/H.265/MJPEG)： 1920x1080@30fps, 1280x720@30fps Sun (H.264/H.265/MJPEG)： 720x480@30fps, 640x480@30fps |
| Browser | Microsoft Edge |
| IVA Setting | Damage detection, Area detection, Cross-line detection, Sound detection |
| Camera Setting | Overall Brightness, Object Brightness，Saturation, Hue, Contrast,，Sharpness |
| Digital Panning | Supports automatic digital pan-tilt-zoom (PTZ) |
| Digital Alarm I/O | Equipped with Alarm In/Out I/O pins, can be used with backend isolated DIDO hardware board |
| Date/Time | NTP, Manual Sync. (with PC time), Scheduled reboot |
| Audio | Supports audio input/output |
| Power Supply | DC 12V/POE Option |
| LAN | RJ45 10M / 100M |
‧Specifications are subject to change without notice.
