NV-201OA 2MP IP Camera – Vandal Dome Type
NV-201OA 2MP IP Camera – Vandal Dome Type

．H.264 / H.265 / MJPEG video compression format, maximum resolution 1920x1080
．2.7mm~12mm manual zoom lens
． Supports video mirroring, flipping and lens distortion correction.
． Supports uploading to FTP / Google Drive (cloud storage).
． CGI files can be provided for integration with back-end equipment vendors.
． Support damage detection, area detection, cross-line detection and object tracking.
． Supports intelligent analysis of triggers, E-mail and capture image and LINE notification.
． two way audio support
． Support scheduled reboot
． Supports Power On Ethernet (PoE)

  • Overview
  • Specification

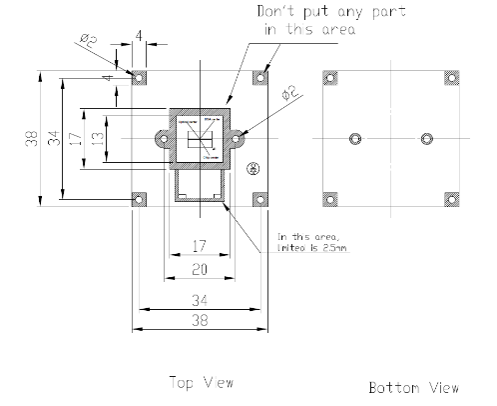

  • Dimensions

Using Sony IMX307 CMOS sensor, which has excellent picture quality and lower noise, and Augentix's unique optical flow technology, the camera provides a complete solution for Intelligent IP camera applications.

．H.264 / H.265 / MJPEG video compression format, maximum resolution 1920x1080
．2.7mm~12mm manual zoom lens
． Supports video mirroring, flipping and lens distortion correction.
． Supports uploading to FTP / Google Drive (cloud storage).
． CGI files can be provided for integration with back-end equipment vendors.
． Support damage detection, area detection, cross-line detection and object tracking.
． Supports intelligent analysis of triggers, E-mail and capture image and LINE notification.
． two way audio support
． Support scheduled reboot
． Supports Power On Ethernet (PoE)



Contact Information
Eddie Tu(Taiwan)
Contact number：886-2-8797-5801 #6853
customer service hotline：02-8797-3455

Shawn Chien(Singapore)
Contact number：+65 89380269

 J. Senthil Kumar(India)
Contact number：+91 85080 24918
 型號 NV-201OA 2MP
Sensor SONY IMX307 (1/2.8" CMOS)
Low Lux B/W：0.01 Lux，0 Lux with IR
Lens 2.7mm-12mm Manual focus lens
IR 24 array type infrared lamps, effective distance of infrared lamps is 20M.
WDR D-WDR
Noise Reduction Support
Encoder H.264 / H.265 / MJPEG
Bit Rate Mode CBR,VBR
Resolution

Main (H.264/H.265/MJPEG)：
1920x1080@30fps, 1280x720@30fps
Sun (H.264/H.265/MJPEG)：
720x480@30fps, 640x480@30fps
Browser Microsoft Edge
IVA Setting Damage detection, Area detection, Cross-line detection, object tracking detection
Camera Setting Overall Brightness, Object Brightness，Saturation, Hue, Contrast,，Sharpness
Protocol Support ONVIF
Audio Microphone in、
Speaker out
Power Supply DC 12V/PoE
LAN RJ45 10M / 100M

‧Specifications are subject to change without notice.
