NB-293D/PD 5MP IP Camera - Gun Type
NB-293D/PD 5MP IP Camera - Gun Type
． 1./2.8" Sony Sensor
．1080P real-time, high-definition, high-resolution video
．H.265 video compression
．PoE support (optional)
．Alarm I/O support
．Suitable for agricultural, road, and security surveillance
．Supports automatic image capture and uploading
．Integrated IVA image recognition (Tamper detection, ROI detection, Tripwire detection, Object tracking)
．Support for OGA Scan APP
- Overview
- Specification

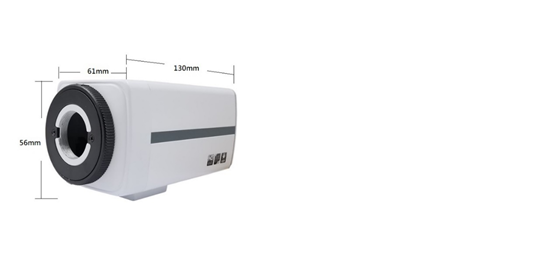

- Dimensions
The module features the Sony IMX335 CMOS image sensor for outstanding image quality and low noise. Augentix’s proprietary Optical Flow technology is incorporated to provide a total solution for the development of smart Network Camera solutions.
．1./2.8" Sony Sensor
．1080P real-time, high-definition, high-resolution video
．H.265 video compression
．PoE support (optional)
．Alarm I/O support
．Suitable for agricultural, road, and security surveillance
．Supports automatic image capture and uploading
．Integrated IVA image recognition (Tamper detection, ROI detection, Tripwire detection, Object tracking)
．Support for OGA Scan APP
．1080P real-time, high-definition, high-resolution video
．H.265 video compression
．PoE support (optional)
．Alarm I/O support
．Suitable for agricultural, road, and security surveillance
．Supports automatic image capture and uploading
．Integrated IVA image recognition (Tamper detection, ROI detection, Tripwire detection, Object tracking)
．Support for OGA Scan APP
| 型號 | NB-293D/PD |
| Image Unit | HC1783S ; 1/2.8" Sony IMX335 CMOS |
| Minimum illumination | Color 0.5Lux@F2.0 ; B/W 0.1Lux@F2.0 |
| Signal-to-Noise Ratio | ≧50db(AGC off) |
| Wide Dynamic Range | >80db |
| Xnd Flash | 128MB |
| DRAM | 4Gb |
| onvif Support | Yes |
| Browser | IE/Firefox/Chrome/Safari |
| CGI | Support |
| Mobile Phone Support | Support for browsing and configuration over mobile phone |
| Auto IRIS | X |
| Local storage | X |
| IR LED | X |
| Smart recognition | Tamper detection, ROI detection, Line Crossing detection, Object detection |
| Audio input | Support (Option) |
| Audio output | Support (Option) |
| CVBS output | X |
| Storage interface | X |
| I/O Interface | Alarm Input/Output、RJ45、DC In |
| Waterproof rating | X |
| Internet | 10/100 Mbps |
| Image Compression Format | H.265 / H.264 / MJPEG |
| Image Resolution | Mainstream:2592*1944, 1920*1080 Sub-stream: 1280*720, 640*480 |
| Transmission | 64-4096Kbps, Support CBR-VBR |
| Operating Temperature/ Storage Temperature |
-10°~50° / -20°~60° |
| Operating Humidity/ Storage Humidity |
80%RH / 90%RH |
| Power Supply | DC12V / PoE |
| Power Consumption | 3W(Max) |
| Dimensions | (L)130 x (W)61 x (H)56mm |
| Weight | 310g |
‧Specifications are subject to change without notice.
