． 1./2.8" Sony Sensor
．Supports automatic image capture and uploading
．1080P real-time, high-definition, high-resolution video
．Support for OGA Scan APP
．H.265 video compression
．Suitable for agricultural and road surveillance
．PoE support (optional)
．Support for motorized focus lens (3.2mm~10.5mm)
．IP66 waterproof-rating
．Integrated IVA image recognition (Tamper detection, ROI detection, Tripwire detection, Object tracking)
- Overview
- Specification
- Dimensions
The module features the Sony IMX327 CMOS image sensor for outstanding image quality and low noise. Augentix’s proprietary Optical Flow technology is incorporated to provide a total solution for the development of smart Network Camera solutions.
．1./2.8" Sony Sensor
．1080P real-time, high-definition, high-resolution video
．H.265 video compression
．PoE support (optional)
．Support for motorized focus lens (3.2mm~10.5mm)
．IP66 waterproof-rating
．Suitable for agricultural and road surveillance
．Supports automatic image capture and uploading
．Integrated IVA image recognition (Tamper detection, ROI detection, Tripwire detection, Object tracking)
．Support for OGA Scan APP
| Model | NV-200A/AP |
| Image Unit | HC1783S ; 1/2.8" Sony IMX327 CMOS |
| Minimum illumination | Color 0.5Lux@F2.0 ; B/W 0.1Lux@F2.0 |
| Signal-to-Noise Ratio | ≧50db(AGC off) |
| Wide Dynamic Range | >80db |
| Xnd Flash | 128MB |
| DRAM | 4Gb |
| onvif Support | Yes |
| Browser | IE/Firefox/Chrome/Safari |
| CGI | Support |
| Mobile Phone Support | Support for browsing and configuration over mobile phone |
| Auto IRIS | Support |
| Local storage | X |
| IR LED | 60M |
| Smart recognition | Tamper detection, ROI detection, Tripwire detection, Object detection |
| Audio input | Support (Option) |
| Audio output | Support (Option) |
| CVBS output | X |
| Storage interface | X |
| I/O Interface | X |
| Waterproof rating | IP66 |
| Internet | 10/100 Mbps |
| Image Compression Format | H.265 / H.264 / MJPEG |
| Image Resolution | Mainstream: 1920*1080 Sub-stream: 1280*720, 640*480 |
| Transmission | 64-4096Kbps, Support CBR-VBR |
| Operating Temperature/ Storage Temperature |
-10°~50° / -20°~60° |
| Operating Humidity/ Storage Humidity |
80%RH / 90%RH |
| Power Supply | DC12V / POE |
| Power Consumption | 3W(Max) |

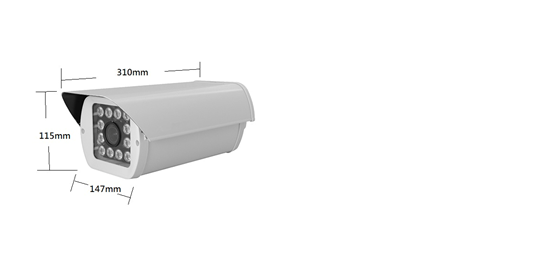

| Dimensions | (L)310 x (W)147 x (H)115mm |
| Weight | 1400g |
‧Specifications are subject to change without notice.
